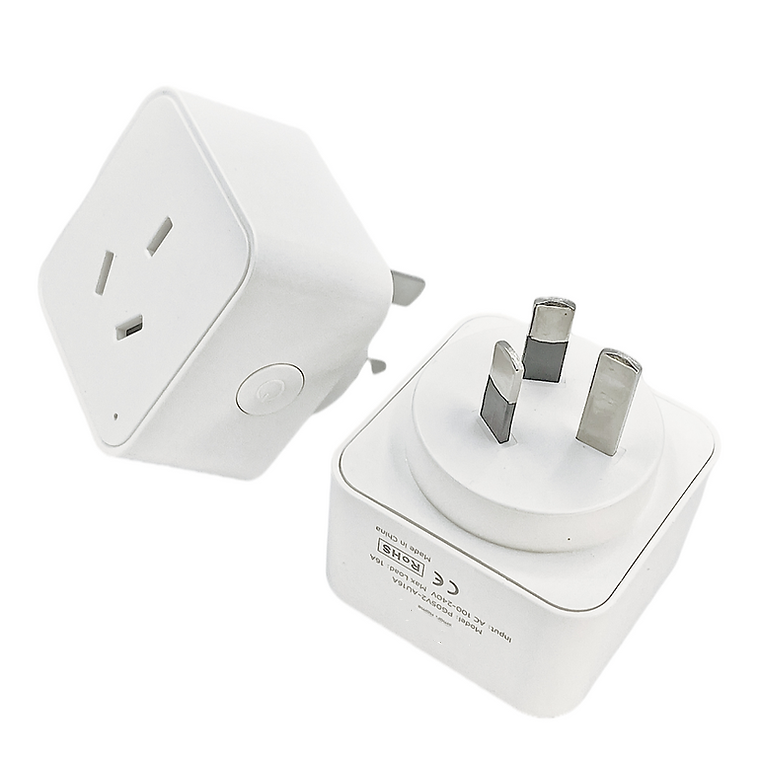

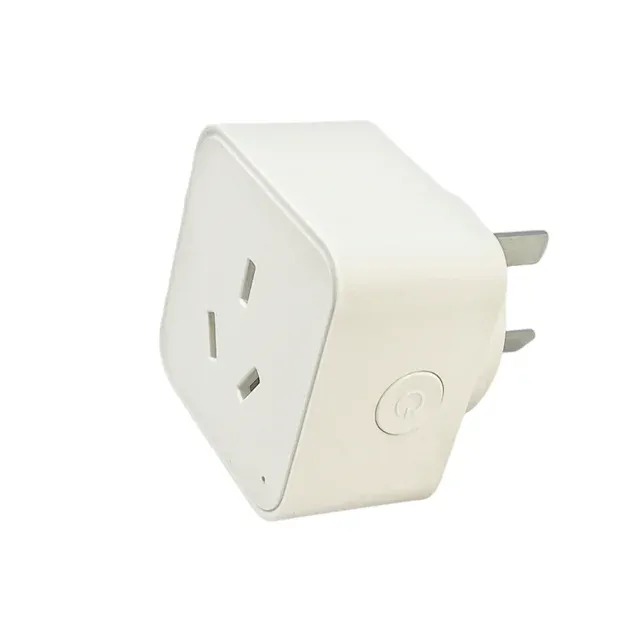

Athom Preflashed TASMOTA Australia Smart Plug Works With Home Assitant Electric Consumption Monitoring 10A

Notice: The order shipped after 21st Jan 2022 is upgraded new version. No calibration needed HLW8032 consumption monitoring chipset build in The measurement error octive power0.2% The measurement error of effective current is 0.5% The measurement error of effective voltage is 0.5% Pre Flashed TASMOTA Australia Plug Consumption monitoring The latest full version Fully compatible with standard Tasmota OTA server Pre configed IOs plug and play Pre flashed before assembg Build in ESP8285 chip with 2M flash Total local control with quick setup and updates. Control using MQTT, Web UI, HTTP or serial. Automate using timers, rules or scripts. Integration with home automation solutions. Incredibly expandable and flexible. Can be easily upgrade to ESPHome or Homekit etc. Contact us for upgrade firmware Tasmota Template {NAME:Athom Plug V2,GPIO:[0,0,0,3104,0,32,0,0,224,576,0,0,0,0],FLAG:0,BASE:18} The old version (shipped before 20th Jan 2022) tamplate is: {NAME:Athom Power Monitoring Plug,GPIO:[0,0,0,32,2720,2656,0,0,2624,544,224,0,0,1],FLAG:0,BASE:18} GPIO GPIO# Component GPIO0 None GPIO1 None GPIO2 None GPIO3 CSE7766 Rx GPIO4 None GPIO5 Button1 GPIO9 None GPIO10 None GPIO12 Relay1 GPIO13 Ledki GPIO14 None GPIO15 None GPIO16 None FLAG None The old version (shipped before 20th Jan 2022) : GPIO# Component GPIO0 None GPIO1 None GPIO2 None GPIO3 Button1 GPIO4 BL0937 CF GPIO5 HLWBL CF1 GPIO9 None GPIO10 None GPIO12 HLWBL SELi GPIO13 Ledk GPIO14 Relay1 GPIO15 None GPIO16 None FLAG None Specification Specification: *Input voltage：100-240VAC 50/60Hz *Current：10A(Max) Monitoring: Yes *Wireless standard：IEEE802.11b/g/n,2.4GHz *Housing Color：Whtie *Operation Temperature：-20℃～+50℃ *Plastic material:ABS+PC *Fire-protection rating:94-V0 Notice: HLW8032 ocnally report invalid power measurements for load values below 5W. During this situation it sometimes reports a valid load. By setting SetOption39 to 128 (default) it must read at least 128 invalid power readings before reporting there is no load. To discard all loads below 6W simply set SetOption39 1 (0 will reset to default on next restart) so it will report no load below 6W.
